AMPLITUDE & TONE CONTROLLER
$329.00

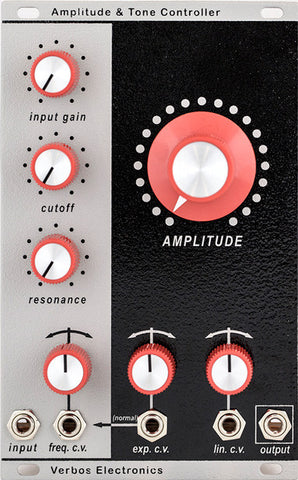

Verbos Electronics AMPLITUDE & TONE CONTROLLER
The Amplitude & Tone controller is a totally discrete VCA with simultaneous exponential and linear CV input. It also contains an all discrete, Vactrol based VCF with diode limited resonance. It also has a discrete input gain stage. Careful balancing of the input gain and resonance control sets the mix of self oscillation and input signal, distorted on the VCA input if desired.
There are no ICs in the signal path.
• 16 HP
• 30mA +12, 20mA -12
Manufacturer
Format
Eurorack
Functions
Amp, Tone, VCA, Filter
Bus Board Cable Type
N/A
Width
12HP
Power Supply
+-12v
Depth
26mm
Max Current
50mA
CV IO
N/A
