DALEK MODULATOR

LIVEWIRE DALEK MODULATOR

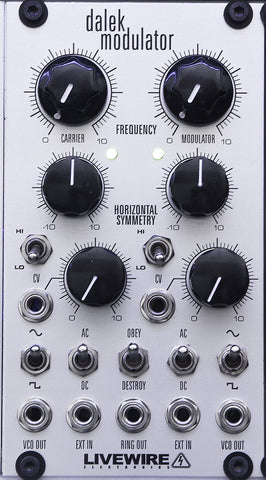

The first module in the Alien Modulator series, the Dalek Modulator contains 2 linear cross-modulating VCOs and a ring modulator in one module.

The ring modulator’s carrier and modulator inputs are normalized to the internal VCOs, but either or both can be replaced with any external signal. VCOs feature internal cross-modulation, horizontal symmetry control, sine and square wave outputs and can be used independently of the ring modulator.

Inputs: CV modulation of frequency with attenuation, carrier sig in, modulator sig in

Outputs: Carrier VCO out, modulator VCO out, ring modulated sig out

Controls: Carrier & modulator VCO controls for frequency, horizontal symmetry, hi/lo speed selection, waveform selection and CV modulation attenuation. Each external input has selectors for AC/DC coupling. Modulation can obey or destroy!

Space Usage: 14 HP/TE

Current Consumption: 70ma

(Ships with Doepfer-style ribbon power connector and 4 x M4 mounting fasteners)
