FREQUENSTEINER

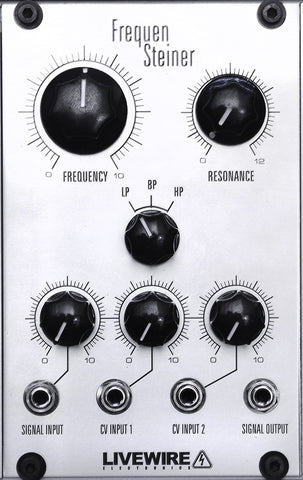

LIVEWIRE FREQUENSTEINER

Although little was known about this filter until recent years, the Steiner multi-mode VCF now needs little introduction.

This is the authorized exclusive re-release of the SYNTHASYSTEM multimode filter, which differs from the Synthacon’s as it incorporates a unique resonation circuit and an expanded diode ladder. And in keeping with it’s initial design, the Livewire FrequenSteiner incorporates all discrete components in the filter core (no ICs) and a single input which is switch selectable for low, band or highpass output taps.

Livewire worked closely with Nyle Steiner on the modern adaptation of this classic design and the FrequenSteiner VCF is the first of a series of planned re-releases from Nyle’s legendary SYNTHASYSTEM modular.

Inputs: Audio signal input, 2x CV frequency modulation inputs with attenuation.
Outputs: Filtered signal output.
Controls: Sigl in volume, 2x CV mod attenuators, Freq Cutoff, resonance, Mode Sw
Space Usage: 16 HP/TE
Current Consumption: 20mA

(Ships with Doepfer-style ribbon power connector and 4 x M4 mounting fasteners)
