LEIPZIG-SK

ANALOG SOULUTIONS LEIPZIG-SK

ANALOG MONOSYNTH WITH ANALOG SENQUENCER/KEYBAORD

KEY FEATURES OF LEIPZIG-SK

• Pure analogue voice and modulation circuitry.
• Fat Moog style transistor ladder filter.
• 2 VCOs with Glide and Sub-VCOs.
• Osc Sync & Cross-Mod
• Plenty of modulation routing possibilities.
• We are a big fan of electronic percussion here, so Leipzig-S modulation choices provide for good drum possibilities
• Analogue step sequencer – with plenty of clocking options.
• Audio input so can be used as a sound processor.
• Rugged steel/aluminium construction.
• MIDI In for software sequencer control.

This synth has NO memories! - Advantages;

• None of the parameters or controls are quantised. So when you turn a knob, you are turning a resistor that affects a real analogue circuit.
• Because each parameter is not under solid CPU control, each parameter has that tiny analogue drift that adds so much to character.
• You are forced to be creative. No reliance on presets! Each time you make a sound you are being original.
• Quick, easy and simple to use! WYSIWYG - no nasty menus and sub-menus to change the sound.


The SK is almost identical to the S. But with the addition of a MIDI controller keyboard.

Keyboard

• Velocity sensitive, semi-weighted, 37 keys
• LCD to enable editing of keyboard set-up (transpose, pitch bend range, retrig, etc)

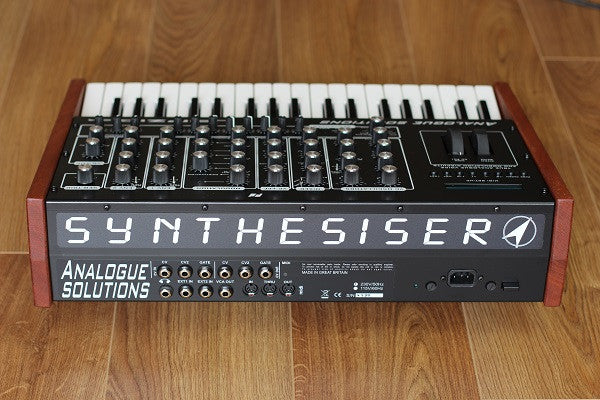

• 1/4" CV inputs and outputs
• Headphone socket
• Internal power supply
• Pitch and Mod wheels



Differences between Leipzig-S/SK and the original Leipzig;

• Envelopes are now full ADSR
• EGs can be disconnected from MIDI trigger
• VCO2 can be disconnected from MIDI (free running modulator!)
• Analogue step sequencer
• VCF can be modulated from either EG1 or EG2

Weight: 7.7Kg
Size: 565mm x 405mm x 135mm (W x D x H)
